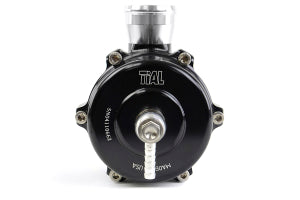

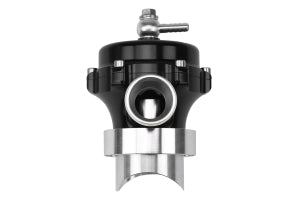

Tial QR Recirculating Blow Off Valve 10psi Spring Black 1.34in Outlet

Tial QR Recirculating Blow Off Valve 10psi Spring Black 1.34in Outlet

$273.19 USD
$273.19 USD
Sale Not in Stock - Please Email for Availability
-Shipping calculated at checkout.
We currently have 0 at our Distribution Centre. Please allow 2-3 business days for Handling.

FEATURES & PRODUCT DETAILS



Here, you are looking at the Tial QR 50mm Recirculating Blow-Off Valve. This blow-off valve is based on the Tial High-Performance Q. This is a recirculating model that will put the vented boost back into the intake. This blow-off valve is highly utilized and coveted among enthusiasts and professional race teams alike due to the build quality, longevity, and most importantly the performance. The QR 50mm Recirculating Blow-Off Valve will perform exceptionally from mid to high-powered street cars, to track-dedicated race cars and rally cars.







DETAILS:

  • Black finish option
  • QR is a recirculating valve based on the high-performance Tial Q.
  • Uses the standard Tial V-band flange and can be converted into a standard Q BOV by swapping the bottom piece
  • For use on turbocharged and supercharged applications (Paxton, Vortec)
  • The body and all internal components are CNC-machined from 6061 aluminum alloy materials
  • Features a large 1.98 in (50.5mm) valve
  • The V-band design aluminum mounting clamp gives a very clean and unique appearance and uses stainless steel hardware for a long-lasting corrosion-free appearance
  • The valve seat utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out
  • The valve stem and guide are Teflon-lubricated and hard anodize-coated for wear resistance
  • The blow-off valve also comes with our own machined aluminum banjo-type air fitting and bolt, with oversized 10mm hose barb for quick actuator response
  • The actuator has a high temp silicone Nomex-reinforced diaphragm  for long life
  • Includes aluminum weld-on base, v-band clamp, hardware, and fittings
  • Includes 10 psi spring

    •






    SPECIFICATIONS

    Brand: Tial
    Adjustable: No
    Color: Black
    Design: Piston
    OEM Replacement: No
    QTY: 1
    Valve Type: Recirculating
    Includes Gasket(s): No
    Mfgr. Warranty: Limited Lifetime Warranty
    Condition: New Product
    Return Policy: Standard
