Tial MV-R Wastegate 44mm Purple w/ All Springs



This is the Tial 44mm MV-R External Wastegate. This is one of Tial's most popular and utilized wastegate models that offers optimal boost control throughout many ranges. The MV-R supersedes the previous 44mm design, and now includes water cooling ports among other improved features to prolong the performance and longevity of this component. Tial wastegates are highly utilized among enthusiasts with high-horsepower daily drivers, and they are also employed on track dedicated race cars, and rally cars as well.





DETAILS:

Water cooling ports (not required to run) for those heavy-duty applications, three bottom pressure ports and two top ports for boost controllers like the AMS-1000.

High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.

High-temperature silicone Nomex reinforced actuator diaphragm.

17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at a temperature to 900F (483C).

 Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.

All Stainless Steel hardware.

Mating weld flanges are 304L

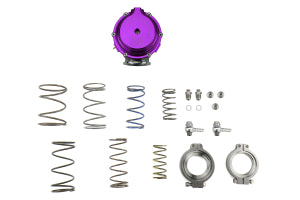

Includes all of the springs so you can tune it to your cars needs without spending money on extra springs

Springs come pre-installed from  Tial  so you will want to verify the spring settings before installation

Purple finish







BAR PSI SPRING COMBINATION 0.3 4.35 Red 0.4 5.80 Blue 0.5 7.25 Green + Red 0.6 8.70 Green + Blue 0.7 10.15 Black + Red 0.8 11.60 Black + Blue 0.9 13.05 Green + Red + Black 1.0 14.50 Green + Blue + Black 1.1 15.95 Yellow + Red + Black 1.2 17.40 Black + Blue + Yellow 1.3 18.85 Plain + White + Blue + Green 1.4 20.30 Plain + Black + Red + Yellow 1.5 21.75 Plain + Black + Blue + Yellow
