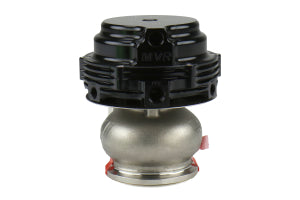

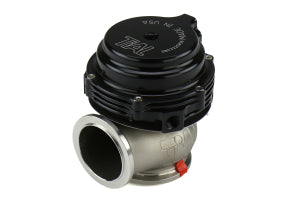

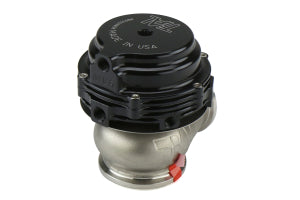

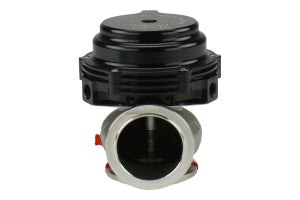

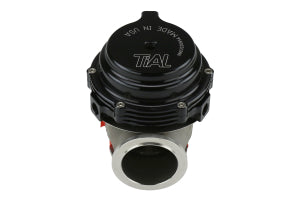

Tial MV-R Wastegate 44mm Black w/ All Springs

This is the Tial 44mm MV-R External Wastegate. This is one of Tial's most popular and utilized wastegate models that offers optimal boost control throughout many ranges. The MV-R supersedes the previous 44mm design, and now includes water cooling ports among other improved features to prolong the performance and longevity of this component. Tial wastegates are highly utilized among enthusiasts with high-horsepower daily drivers, and they are also employed on track dedicated race cars, and rally cars as well.

DETAILS:

Below is a spring chart to display the springs required to achieve the desired boost target.

0.3          4.35        RED

0.4          5.80        BLUE

0.5          7.25        GREEN + RED

0.6          8.70        GREEN + BLUE

0.7          10.15     BLACK + RED

0.8          11.60     BLACK + BLUE

0.9          13.05     GREEN + RED + BLACK

1.0          14.50     GREEN + BLUE + BLACK

1.1          15.95     YELLOW + RED + BLACK

1.2          17.40     BLACK + BLUE + YELLOW

1.3          18.95     PLAIN + WHITE + BLUE + GREEN

1.4          20.30     PLAIN + BLACK + RED + YELLOW

1.5          21.75     PLAIN + BLACK + BLUE + YELLOW
